DC Regulated power supply - Single Output

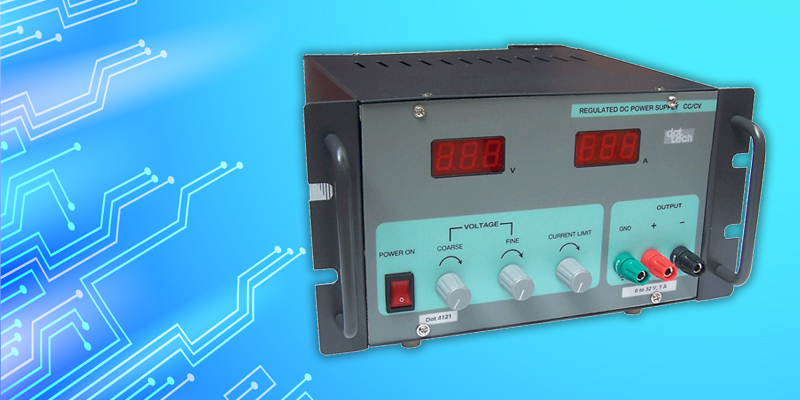

DC Regulated power supply - Single Output CV/CC Model dot 4112 series

Dot 4112 series power supply is constant voltage & current type with high resolution for load and line voltage variation, these are short circuit and overload protected. Current and Voltage are variable from minimum to maximum value.

Model No Output voltage Max Load current

4112
4114
4115

4122
4124
4125
4126
4127
4128

4133
4134
4135
4136
4137
4138
4139

4141
4142
4143
4144
0 to 16 V
0 to 16 V
0 to 16 V

0 to 32 V
0 to 32 V
0 to 32 V
0 to 32 V
0 to 32 V
0 to 32 V

0 to 64 V
0 to 64 V
0 to 64 V
0 to 64 V
0 to 128 V
0 to 128 V
0 to 128 V

15 to 300 V
15 to 300 V
15 to 300 V
15 to 300 V
2 A
6 A
10 A

2 A
5 A
10 A
20 A
30 A
40 A

3 A
5 A
10 A
20 A
1 A
2.5 A
5 A

1 A
2 A
3 A
5 A
Meter 2 digital meters for V & A -- 3 digits LED 0.5" height Accuracy: 0.5%
Ripple 0.02 % mV r.m.s. + 5 mV
Line regulation 0.01 % mV + 9 mV for no load to full load for 10% line variation
Load regulation 0.01 % mV + 9 mV for no load to full load
Protection Constant current type for overload and short circcuit
Power Requirement 230 +/-10% VAC, 50 Hz, single phase
Cabinet Size 19" 1/2 3U Depth 250 mm sub rack { 260 mm (W) x 133 mm (H) x 250 mm (D) } model 4112,4122
19" 3U Depth 320 mm sub rack { 484 mm (W) x 133 mm (H) x 320 mm (D) } model 4115,4124,4125,4133,4134
19" 6U Depth 320 mm sub rack { 484 mm (W) x 266 mm (H) x 320 mm (D) } model 4126,4127,4128,4135,4136,4141,4142,4143,4145
Extra Supplied with mains cord, spare fuse, and operating manual
