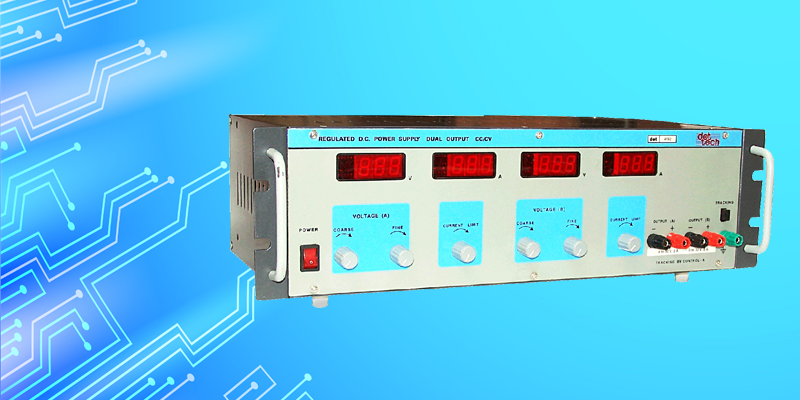

Dot 4164 series power supply is constant voltage & current type with high resolution for load and line voltage variation, these are short circuit and overload protected. Current and Voltage are variable from minimum to maximum value.
| Model No | Output voltage | Max Load current |
|
4159 4160 4162 4164 4165 4166 4172 |
0 to 16 V Dual 0 to 16 V Dual 0 to 32 V Dual 0 to 32 V Dual 0 to 32 V Dual 0 to 32 V Dual 0 to 64 V Dual |
2 A Dual 6 A Dual 2 A Dual 5 A Dual 10 A Dual 20 A Dual 2 A Dual |
| Meter | 4 digital meters for V & A -- 3 digits LED 0.5" height Accuracy: 0.5% |
| Ripple | 0.02 % mV r.m.s. + 5 mV |
| Line regulation | 0.01 % mV + 9 mV for no load to full load for 10% line variation |
| Load regulation | 0.01 % mV + 9 mV for no load to full load |
| Protection | Constant current type for overload and short circcuit |
| Power Requirement | 230 +/-10% VAC, 50 Hz, single phase |
| Cabinet Size |
19" 3U Depth 320 mm sub rack { 484 mm (W) x
133 mm (H) x 320 mm (D) } model 4159,4160,4162,4164,4172 19" 6U Depth 320 mm sub rack { 484 mm (W) x 266 mm (H) x 320 mm (D) } model 4165,4166 |
| Extra | Supplied with mains cord, spare fuse, and operating manual |
