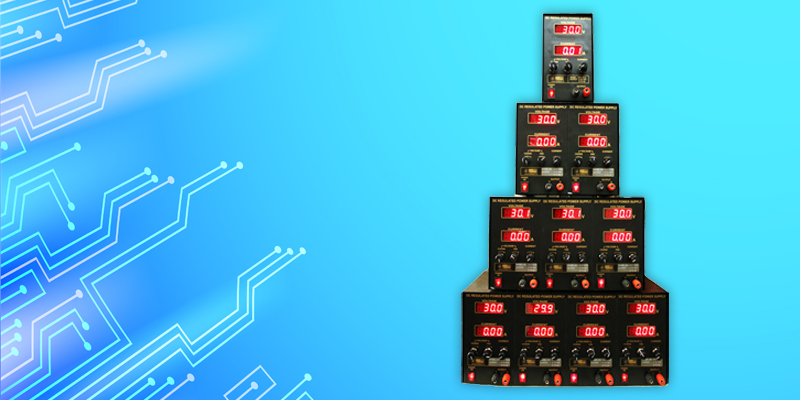

DC Regulated power supply- LAB Series

DC Regulated power supply- LAB Series CV/CC Model dot 0515 series

Dot 0515 LAB series power supply are constant voltage & current type with high resolution for load and line voltage variation, these are short circuit and overload protected. Current and Voltage are variable from minimum to maximum value.

Model No Output voltage Max Load current
ONE OUTPUT

515
5110
1512
1515
15110

3011
3012
3015
30110

6011
6012
6015
TWO OUTPUT
3021
3022
3025
THREE OUTPUT
3031
3032
3035
FOUR OUTPUT
3041
3042
3045
0 to 5 V
0 to 5 V
0 to 15 V
0 to 15 V
0 to 15 V

0 to 30 V
0 to 30 V
0 to 30 V
0 to 30 V

0 to 60 V
0 to 60 V
0 to 60 V

0 to 30 V
0 to 30 V
0 to 30 V

0 to 30 V
0 to 30 V
0 to 30 V

0 to 30 V
0 to 30 V
0 to 30 V
5 A
10 A
2 A
5 A
10 A

1 A
2 A
5 A
10 A

1 A
2 A
5 A

1 A
2 A
5 A

1 A
2 A
5 A

1 A
2 A
5 A
Meter
Digital meters for V & A-3 digits LED 0.5" height Accuracy:0.5%
2 digital meters for V & A - for Single output
4 digital meters for V & A - for Two output
6 digital meters for V & A - for Three output
8 digital meters for V & A - for Four output
Ripple 0.05 % mV r.m.s. + 5 mV
Line regulation 0.05 % mV + 5 mV for no load to full load for 10% line variation
Load regulation 0.05 % mV + 5 mV for no load to full load
Protection Constant current type for overload and short circcuit
Power Requirement 230 +/-10% VAC, 50 Hz, single phase
Cabinet Size 100 mm (W) x 180 mm (H)x 200 mm (D) for model 515,5110,1512.1515,3011,3012,3015
200 mm (W) x 180 mm (H)x 250 mm (D) for model 15110,30110,3021,3022,3025,6011,6012,6015
300 mm (W) x 180 mm (H)x 250 mm (D) for model 3031,3032,3035
400 mm (W) x 180 mm (H)x 250 mm (D) for model 3041,3042,3045
